Dinosaurus (VXSK-A)
System

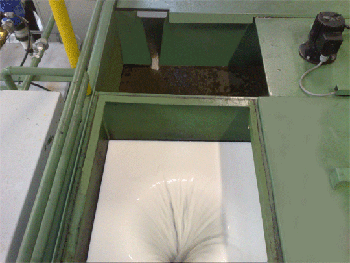

A central coolant management system for water based cutting coolants.
The system includes a built-in 3-phase lamella separator for separation of tramp oil, graphite and other solid particles out of the coolant.
The coolant management system includes: self cleaning 3-phase lamella separator, dirty tank , clean tank, supply pumps, sludge conveyor and automatic top up system.
Automatically collecting, concentrating and removing the contamination from your coolant system.
This machine is of type; Lean Maintenance and no Consumables.
The system includes a built-in 3-phase lamella separator for separation of tramp oil, graphite and other solid particles out of the coolant.
The coolant management system includes: self cleaning 3-phase lamella separator, dirty tank , clean tank, supply pumps, sludge conveyor and automatic top up system.
Automatically collecting, concentrating and removing the contamination from your coolant system.
This machine is of type; Lean Maintenance and no Consumables.
Application
Dinosaurus system is ideal for purification of metal cutting coolants. It can remove out of cutting coolant contaminants like:- Metal chips
- Tramp oil
- Sludge
- Graphite
Separation quality: 25µm
Tramp oil: <1%.
Throughput capacity: 100 lpm - 10.000 lpm/unit
